  Camouflage!  Rich mounts the Stati-Cats. Down below, the log periodic antenna (the one that looks like an outdoor TV antenna) is aimed at the NBC6 tower in Princeton. It'll be picking up our signal on 88.1, and the antennas above will be for the translator output on 95.3. The little tube midway above it is the power divider for the 3-bay Bext antenna. I'm the antenna, catching vibrations; you're the transmitter, give information...  The Powerware UPS and Fanfare reciever in place   One of the Crown transmitters. We've got two, one as a backup (FMA30) and one primary (FMA100).   Downtown looks glowy once the sun angle moves west. Shiiiiiny.  I had to open up the transmitters to set an option jumper down on that lower right board. Now, take a moment to admire that toroidal power transformer. Is that not AWESOME? I can just imagine the happy electrons coursing through it now, bringing our signal to our listeners on and around campus... COMING SOON!
First Photo (Accesskey 'F') Previous Photo (Accesskey 'P') 18 of 20 Next Photo (Accesskey 'N') Last Photo (Accesskey 'L')

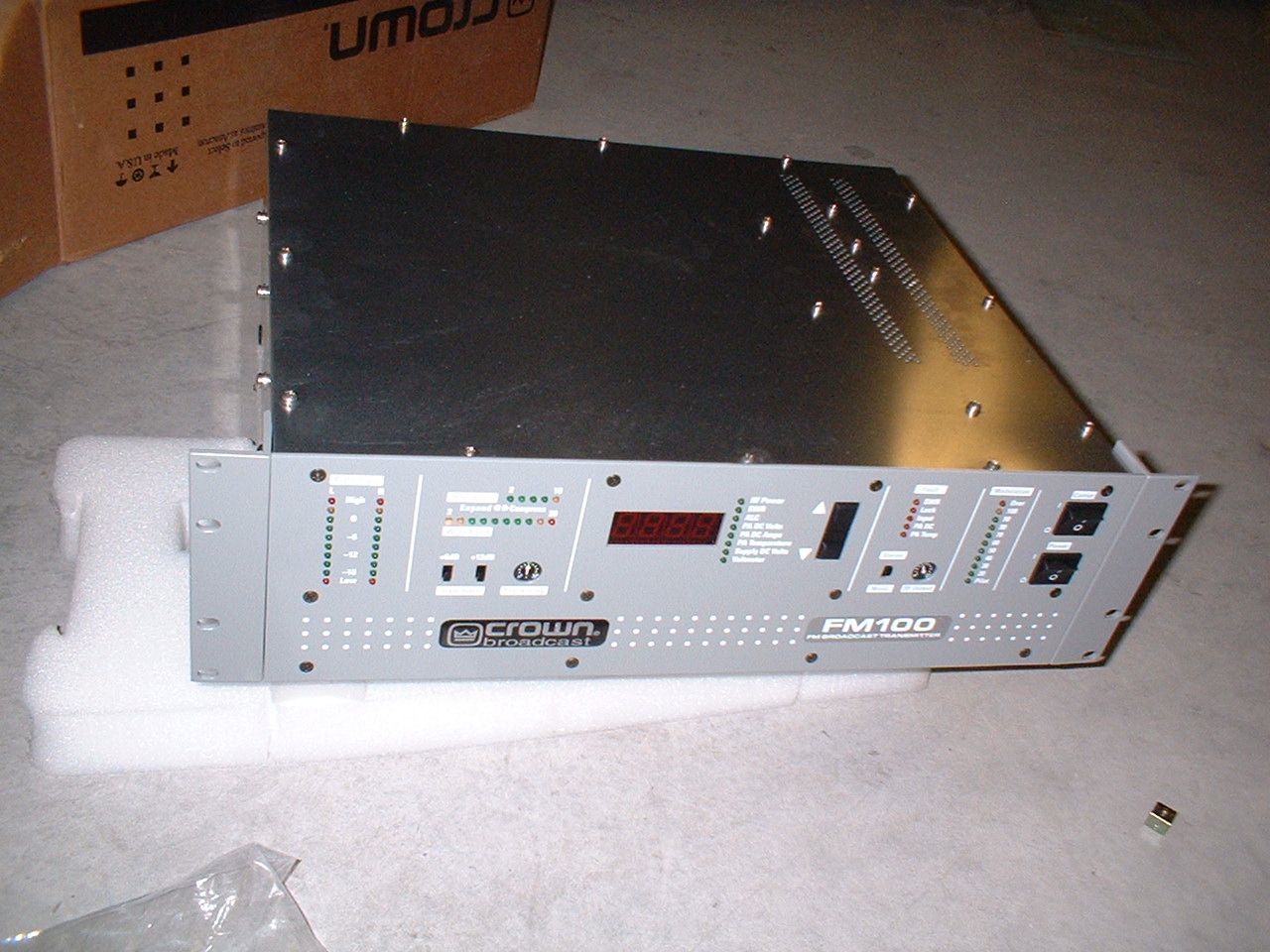

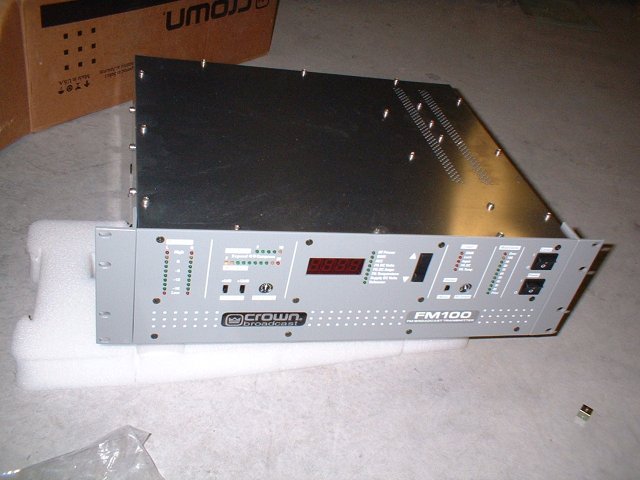

One of the Crown transmitters. We've got two, one as a backup (FMA30) and one primary (FMA100).

One of the Crown transmitters. We've got two, one as a backup (FMA30) and one primary (FMA100).
