  Hey, wait a minute, those giant checkerboard blocks are supposed to be a square wave! What's up here?   Let's just check out the internal power supply voltage, shall we?  RIPPLE FROM HELL. Vertical scale: 50 mV/div; Horizontal scale: 0.1 uSec/div.  This is supposed to be... "a negative pulse", according to the Lab-Volt software. One... single... pulse...
    1 of 4 Next Photo (Accesskey 'N') Last Photo (Accesskey 'L')

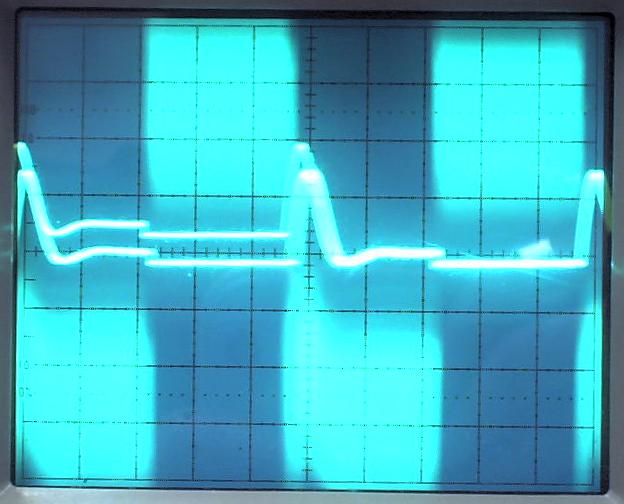

Hey, wait a minute, those giant checkerboard blocks are supposed to be a square wave! What's up here?

Hey, wait a minute, those giant checkerboard blocks are supposed to be a square wave! What's up here?(Nobody (NOBODY))

From: Saitou Toudt toudt@cp-rpg.com (Wed Apr 9 15:13:29 2003)
Your sine wave is messed up too.. what was being inputed here?
From: VXO (vxo) (Sat Apr 12 13:04:54 2003)
That's the input and output of, I believe, an op-amp integrator. (Or was it a differentiator?)

The horribly mutilated square wave is the output, and the little triangle wave pulse is the input. (Incidentally, this is supposed to be the waveform present on the picture that's supposed to be a single negative pulse... but isn't.)
From: Toudt (Sat Apr 17 22:18:27 2004)
Looks just a tid bit mutilated. If I weren't an electrician then I would of never noticed the boxes and thought the sine wave looked rather pretty.. but all I do see is a buncha mess :P
